Zeta-15A
Rs.28,812.71 Rs.70,000.00

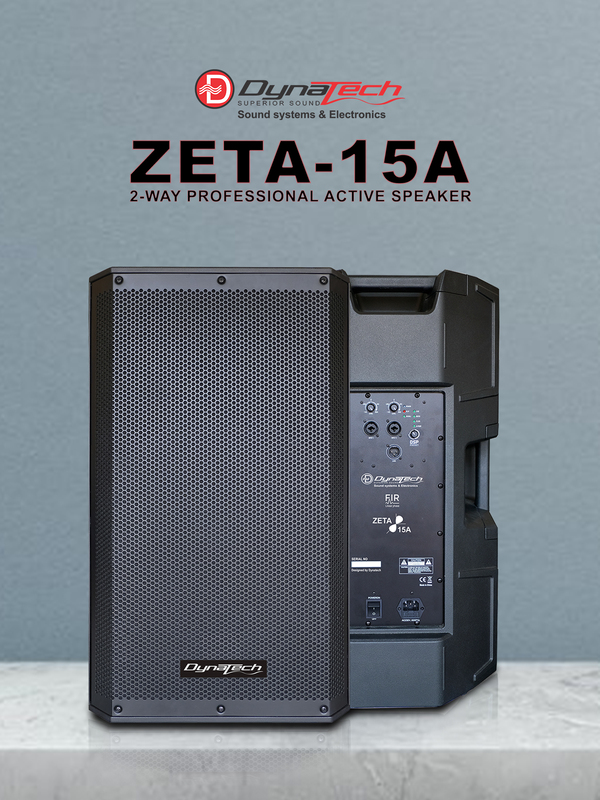

DynaTech Zeta-15A 15" Active Speaker.
SPECIFICATIONS
- 1000W Class- D Bi-Amplification
- 15" Woofer/1.75" Driver
- 45-20000 Hz Linear Frequency response
- 131 dB Maximum SPL@1M
- Coverage Angle H x V - 100° x 60°
- FIR Linear phase DSP processing
- FRFR Full Range Flat Response
Product Details
FLOOR CONFIGURATIONS
Several configurations are possible with ZETA-15A Speakers; they can be placed on the floor or on a stage as
main PA or used as stage monitors; they can also be pole mounted on a speaker stand or over a subwoofer
REAR PANEL FEATURES AND CONTROLS
1. Power Input: Connect the included power cable to this input and connect the other end of the cable to a power source. Make sure the Power Switch is set to off when plugging and unplugging the cable.
2. Power Switch: Turns the speaker on/off. Make sure the Volume knob is set to the lowest before turning it on.
3. MALE XLR SIGNAL OUTPUT This XLR output connector provides a loop trough for speakers daisy chaining.
4. Inputs: FEMALE XLR/JACK COMBO INPUT 1 This balanced input accepts a standard JACK or XLR male connector.
5. VOLUME CONTROL INPUT 1 Adjusts the master volume.
6. Inputs: FEMALE XLR/JACK COMBO INPUT 2 This balanced input accepts a standard JACK or XLR male connector.
7. VOLUME CONTROL INPUT 2 Adjusts the master volume.
8. DSP Preset: LIVE / MUSIC / CLUB / HI-PASS
9. DSP Preset LED: LIVE / MUSIC / CLUB / HI-PASS
10. POWER LED / CLIP LED / SIGNAL LED.
#REMARK:
Bluetooth option not available in this model (ZETA15A)
